Housing & Equipment
Cages & Housing:
Vertical Battery System
Manufactured by Reliance Poultry
A-Frame Battery System
Manufactured by Reliance Poultry
Frame Layer Cages
Product Description
Cages are supplied complete and consist of the following:
- One nipple and drip cup per partition
- One 5 litre header tank and float valve per tier
- Manure deflectors installed on the middle and bottom tiers of three and four tier cages
- 0.8 ā 1.2 mm galvanised feed troughs and accessories
Capacity
- 2 Tier ā 100 commercial layers per
- unit water pressure: created by header tank
- 3 Tier ā 150 commercial layers per
- unit water pressure: created by header tank
- 4 Tier ā 200 commercial layers per
- unit water pressure: created by header tank
Length: 2.45m
Width: 2.00m
Two tier height: 1.60m
Three tier height: 1.85m
Four tier height: 2.45m
Layer Cage Automation
Gantry Feeding Systems for Layer Cage
- Feed dispensing cart installed over cage unit
- Fitted to guide rails on the bottom tier, allowing feed cart to travel along the cage row and dispensing feed into the feed trough
- Gantry systems are available in 2 tier, 3 tier and 4 tier
- Park bays on both ends of cages
- Gantry can be pushed by hand or automation is optional
Direct Drive Chain Feeder Systems
- Classic, proven technique for even, low-stress distribution of feed
- Equal access of feed to all birds and assuring uniform development and feeding
As Commercial installations get larger producers will consider options such as automatic feeding systems, automatic manure removal, as well as egg collection. Mostly these options are considered when multiple houses exist on a site and optimum efficiencies are required.
Crates:
Classic Live Bird Crate (Recycled Black)
Product Description
The Classic Live Bird Crate is made from durable H.D.P.E and is assembled with nylon rivets. It features a single component reinforced gate to prevent birds escaping, with new locating pins to assist in securing the gate in place should pressure be applied from above. There is a second handle on the lid to allow for easier handling and carrying. A distinctive profile design on both the long and short sides allows for better airflow in transit and while stationary. Permanent locating pins on the base and lid to provide additional support and strengthening. Small lid and gate grids help prevent injury to chicken heads, while small floor grids help prevent injury to chicken feet.
Capacity
Carrying Capacity: 6 -10 birds (size dependent)
Stack-ability: 8 high (Stacks with existing live bird crates)
Materials: Recycled High-Density Polyethylene, Nylon rivets
Weight: 5.4kg
Dimensions
( L, W/D H )
Internal ( 700mm, 500mm, 275mm )
External ( 745mm, 545mm, 310mm )
Classic Live Bird Crate (Virgin Colour)
Product Description
The Classic Live Bird Crate is made from durable H.D.P.E and is assembled with nylon rivets. It features a single component reinforced gate to prevent birds escaping, with new locating pins to assist in securing the gate in place should pressure be applied from above. There is a second handle on the lid to allow for easier handling and carrying. A distinctive profile design on both the long and short sides allows for better airflow in transit and while stationary. Permanent locating pins on the base and lid to provide additional support and strengthening. Small lid and gate grids help prevent injury to chicken heads, while small floor grids help prevent injury to chicken feet. Standard virgin colours available are Red or Blue, with all other colours
manufactured to order based on minimum quantities.
Capacity
Carrying Capacity: 6 -10 birds (size dependent)
Stack-ability: 8 high (Stacks with existing live bird crates)
Materials: Virgin High-Density Polyethylene, Nylon rivets
Weight: 5.4kg
Dimensions
( L, W/D H )
Internal ( 700mm, 500mm, 275mm )
External ( 745mm, 545mm, 310mm )
Space Saver Live Bird Crate
Product Description
The Space Saver Live Bird Crate stacks with the existing crate and boasts an astounding 420kg top loading capability. It is easy to unclip, allowing the top half to stack into the bottom half, thus requiring five times less storage space and 80% less space when transporting, and allowing for easier cleaning. The unique diamond profile between stacked crates allows for improved air flow.
Capacity
Carrying Capacity: 10 birds per crate
Packaging: 2500 crates per 40ft container
Weight: 4.046Kg
Dimensions
( L, W/D H )
Internal ( 700mm, 500mm, 275mm )
External ( 745mm, 545mm, 310mm )
Water Systems:
Parent Waterer
From 7 days old to end of cycle (POLTEK)
Automatic Waterer
From zero to end of cycle (POLTEK)
Automatic Ballistic broiler Drinker (Mk6)
Product Description
The broiler drinker is a ballasted drinker specifically designed to accommodate the complete life cycle from day one. The drinker is
fitted with independent ballast which must be filled with sand or cast in
concrete to stabilize the drinker. It comes standard with hanging attachments, a 3 meters PVC flexible water pipe and a clamp saddle with a shut off valve.
Drinking capacity: 100 Birds per Fount
Water pressure: 0.15 to 0.2 bar
Application: From days old to end life cycle
Dimensions: 460mm height X 357 mm Diameter
Weight: 1290g
Automatic Econo Drinker (Mk4) -100 birds per drinker
Product Description
The Econo- Drinker is a non ballast drinker and is excellent value for money. It has fewer assemblies and comes with standard with hanging
attachments, a 3 meters PVC flexible water pipe and a clamp saddle with a shut off valve.
Drinking capacity: 100 Birds per Fount
Water pressure: 0.15 to 0.2 bar
Application: From days old to end life cycle
Dimensions: 460mm height X 298 mm Diameter
Weight: 882g

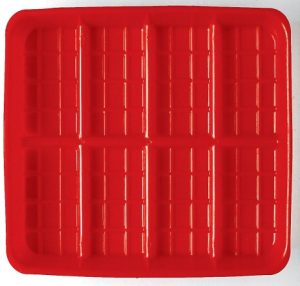

Square
Product Description
Drinking capacity: 3 trays per 100 chicks
Application: From 1 -7 days old chicks.
Dimensions: 50mm height X 290 mm Width X 362 mm Length
Weight: 254g
12 Liters water Fount
Product Description
The 12 liters water fount can be suspended, and is height adjustable with a bayonet interlocking base and id. It is gradually for medical use and has a domed top for anti-perching. It comes standard with an
āSā-hook, 3 meters nylon cord and adjuster.
Drinking capacity: 100 Birds per Fount
Water capacity: 12 liters
Application: From days old to end life cycle
Dimensions: 400mm height X 360 mm Diameter
Weight: 1004g
Feeding Equipment:
2nd Age Feeder
3/100 chickens ratio (POLTEK)
Automatic Waterer
From zero to end of cycle (POLTEK)
Egg Collection:
30 Pocket Tray
06-10-12-15 and 18 Pocket Tray
Heating Systems:
Sunflower
Product Description
The purpose of this brooder is the raising of farm animals and heating of agricultural use warehouses. It is a progressive brooder with manual ignition. It works with LPG or Natural gas depending on the model, it could be placed inside the farm buildings.
Fuel: Liquefied gas or natural gas
Power: 6.5KW
AISI 304 Stainless steel chassis
High quality refractory stainless-steel burner
Safety gas valve with thermocouple
Air filter
One controller in charge of 1-20 Sunflower brooders
Advantages
- Integrated gas control system under ultra-high temperature
- Quick to heat up, efficient on radiant heating

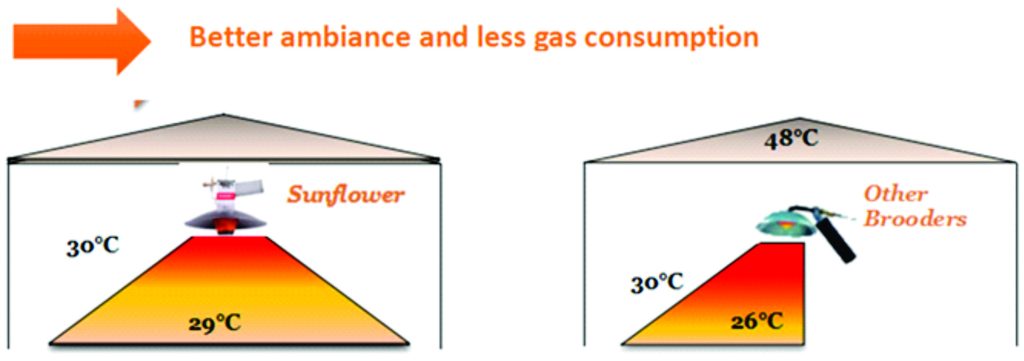

- Better ambiance and less gas consumption
- Create a better life for the animals

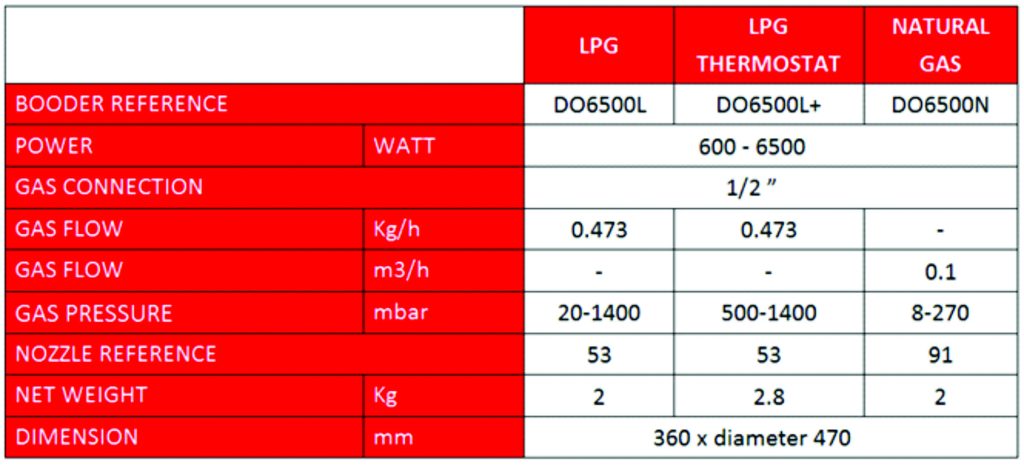

Parameter
Comparison of similar products
SUNHEATER DO-66
Product Description
The purpose of this heater is the raising of farm animals
and heating of agricultural use warehouses.
It is an ON/OFF heater with automatic ignition. It works with LPG or Natural gas depending on the model it could be placed inside or outside the farm buildings. A biogas model is also available.
- AISI 304 Stainless steel chassis or galvanized (depend on the model)
- Distribution fan with fixed flow
- Fan operation is controlled by 1 air flow switch.
- One double gas valve controlled by an electronic circuit card and programmer.
- Electronic ignition is produced by sparking generator
- Flame sensor by ionization
- Thermal protection by overheating thermostat
- The safety control box control the operation cycle of the heater. This programme is equipped with a remote reset in case of a fault. And it can give information to the user when fault.
Advantages
- Environmentally friendly
- Easy to use
- High efficiency
- Energy saving
- Automatic controlled by the environmental controller (or thermostat optional)

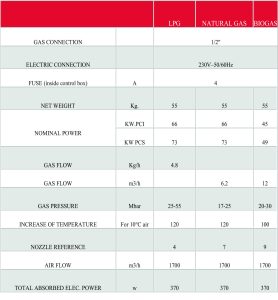

Parameter
